Going to make some meteoras!

[Elias Graves]

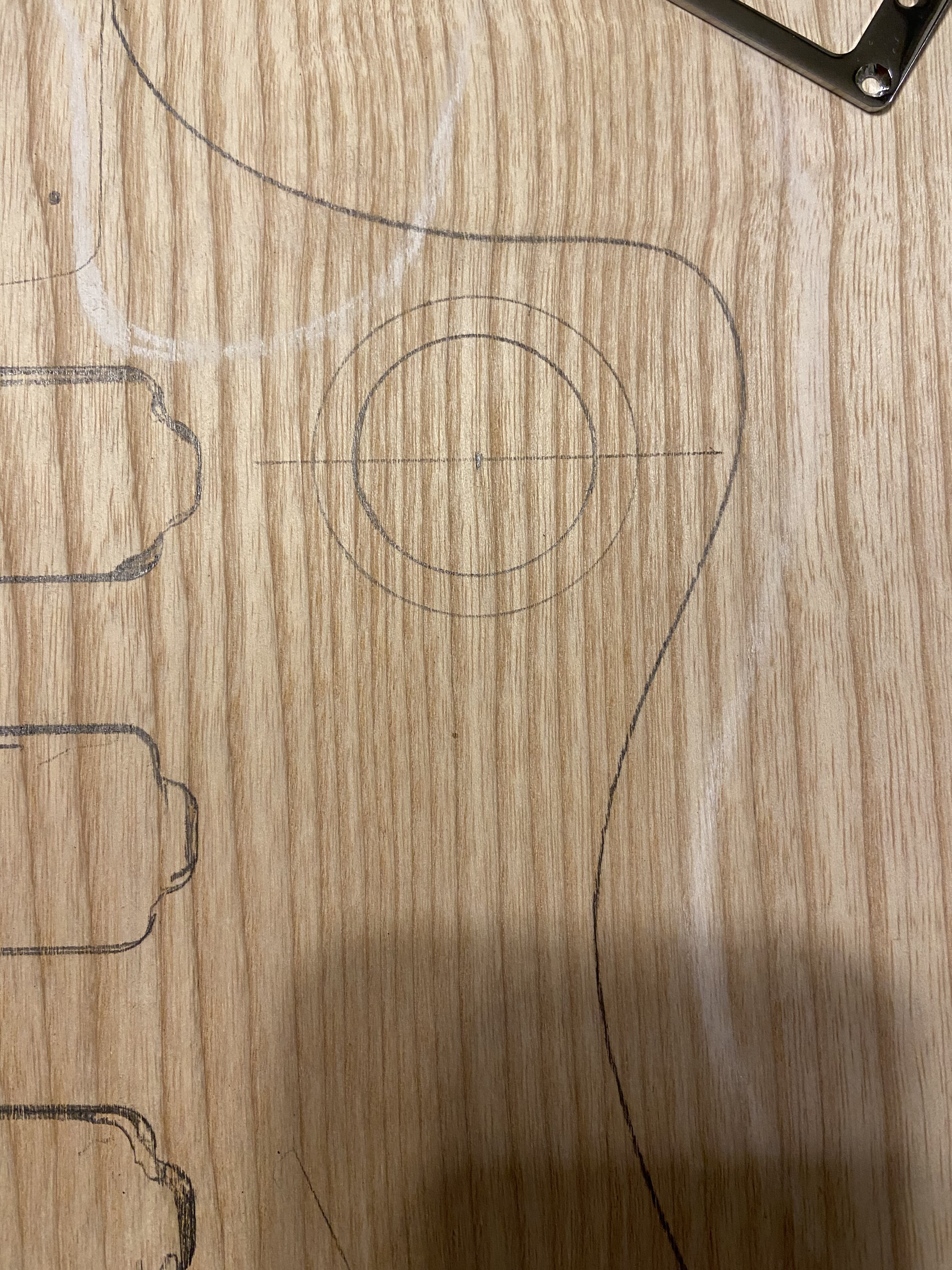

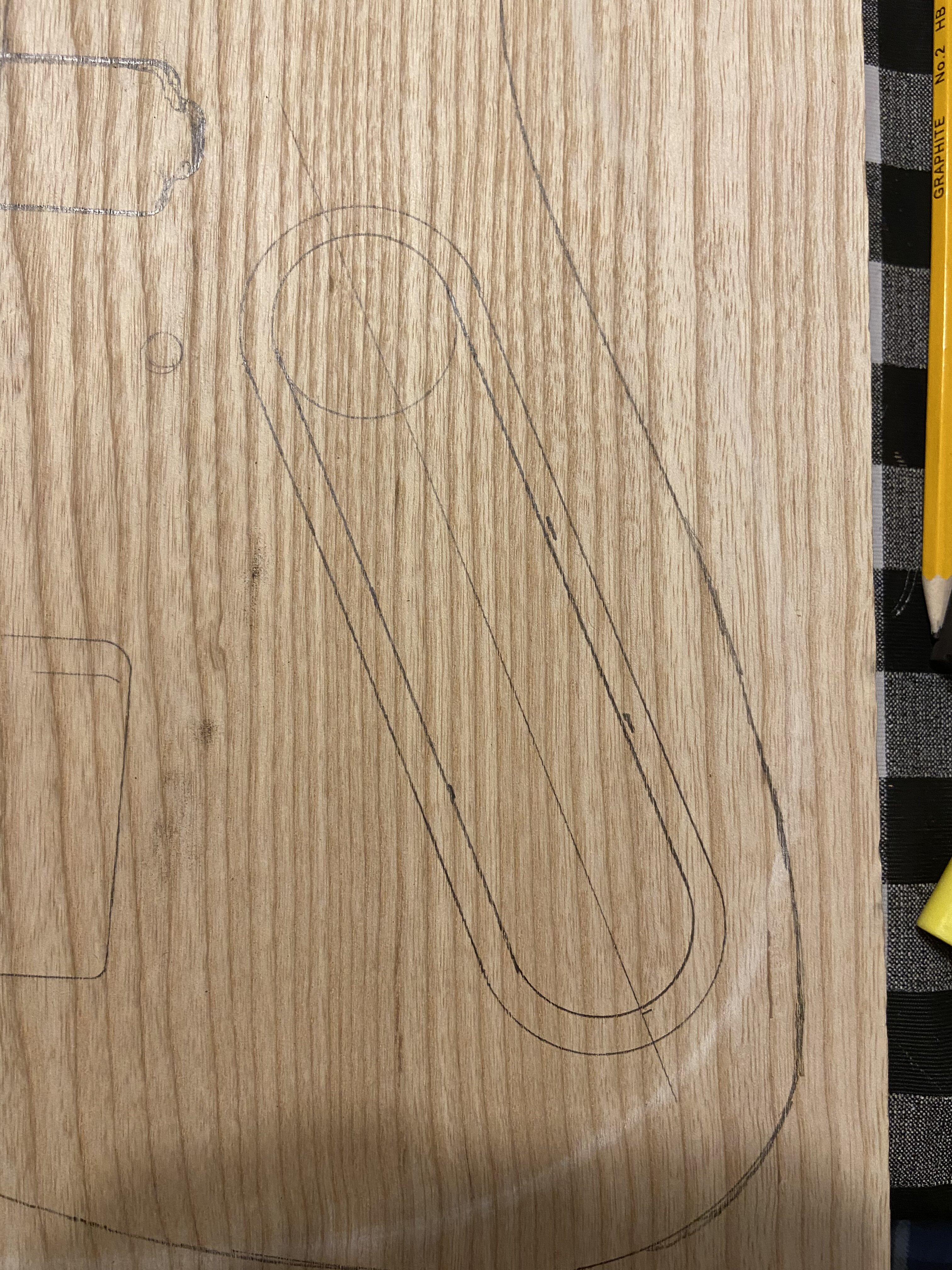

Both control plates will be front routed and covered with a clear plexiglass cover.



[Chad]

Reverse headstock and a mastery? Is it for me?



[dodgechargerfan]

Those pickups look like fun.

Cool project.



[Elias Graves]

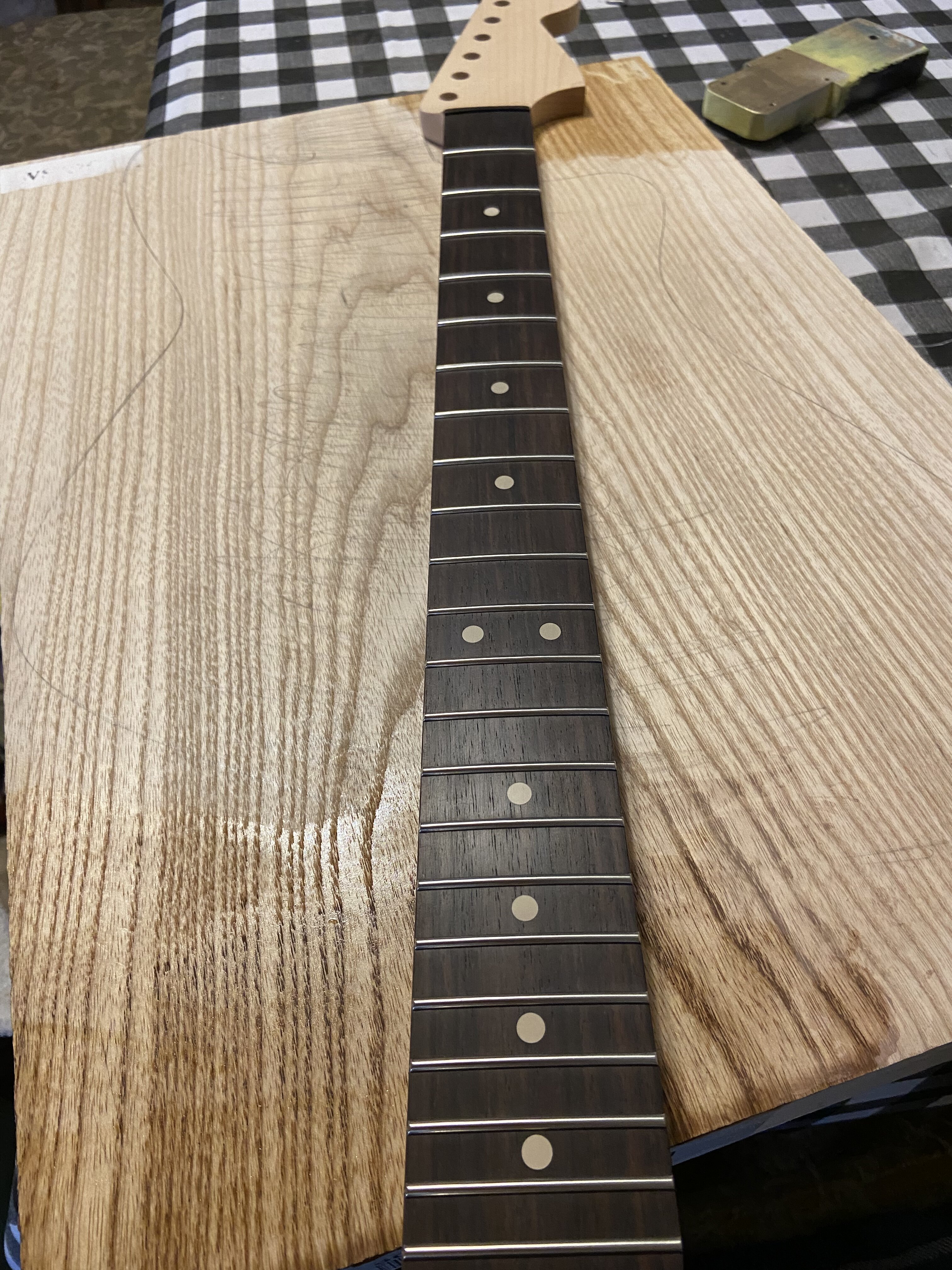

My neck arrived! Warmoth jazzmaster maple and rosewood. 10-16 radius, big ass fret wire.



[Elias Graves]

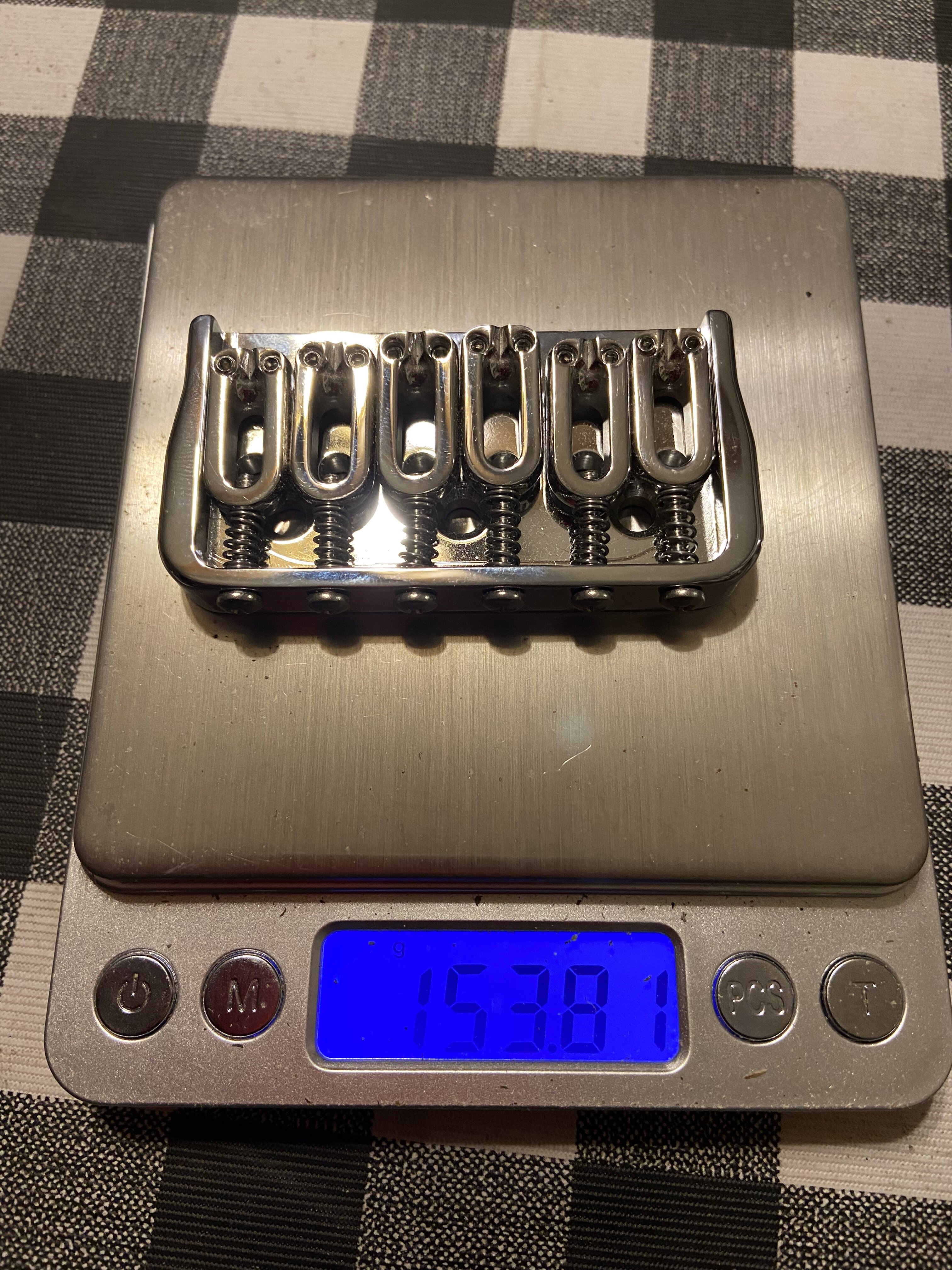

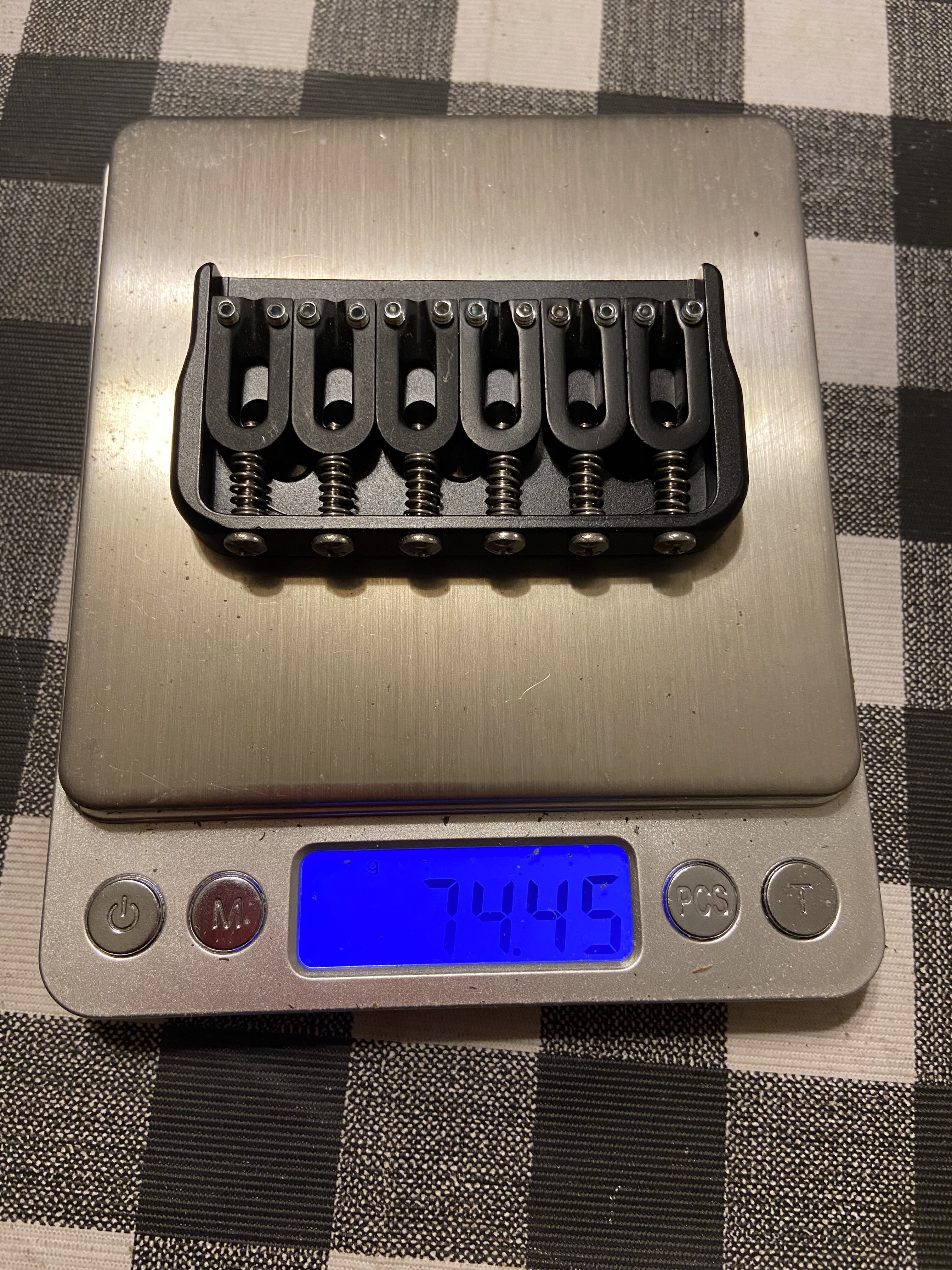

Check this out. I have two identical bridges. Hipshot hardtail strat. One is chrome and has a brass .175 base with stainless saddles. The other is black with an aluminum.175 base and stainless saddles. The weight difference is astonishing. Weight displayed in grams. 75 vs 154

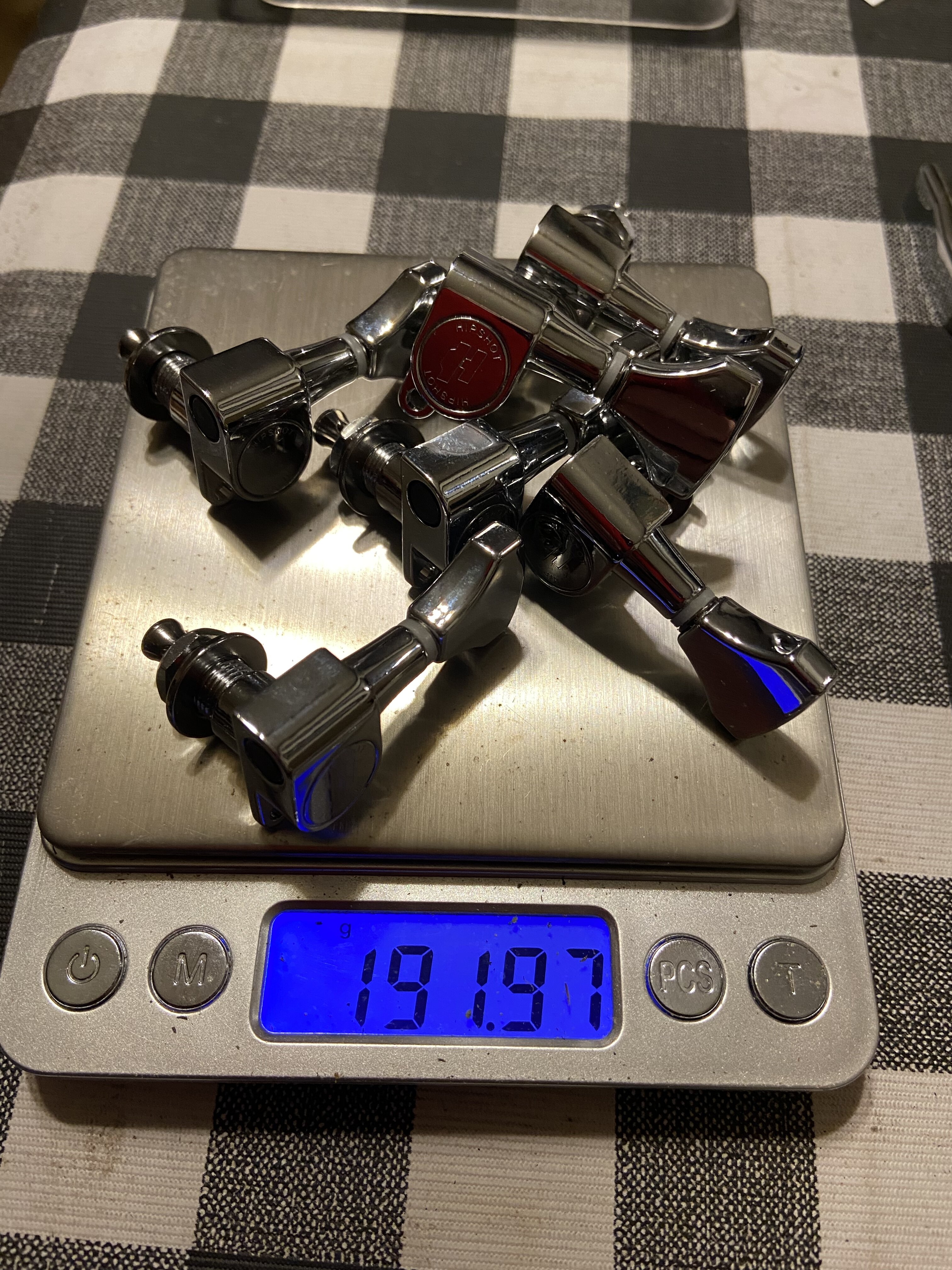

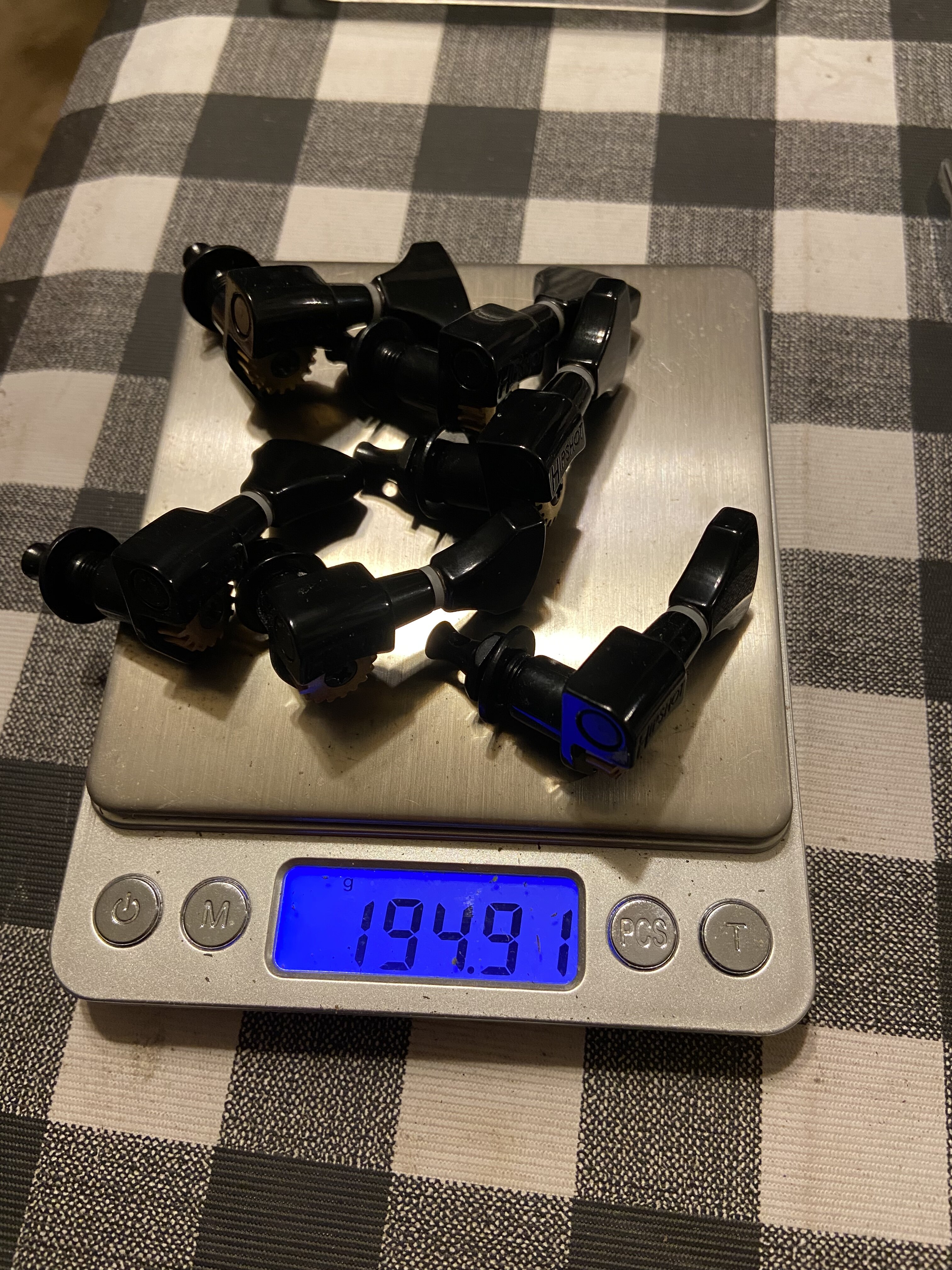

Also of note. Hipshot open gear “ultralight” tuners are 2 grams heavier than Hipshot closed case Schaller clone tuners.



[Elias Graves]

192 grams vs 195



[Elias Graves]

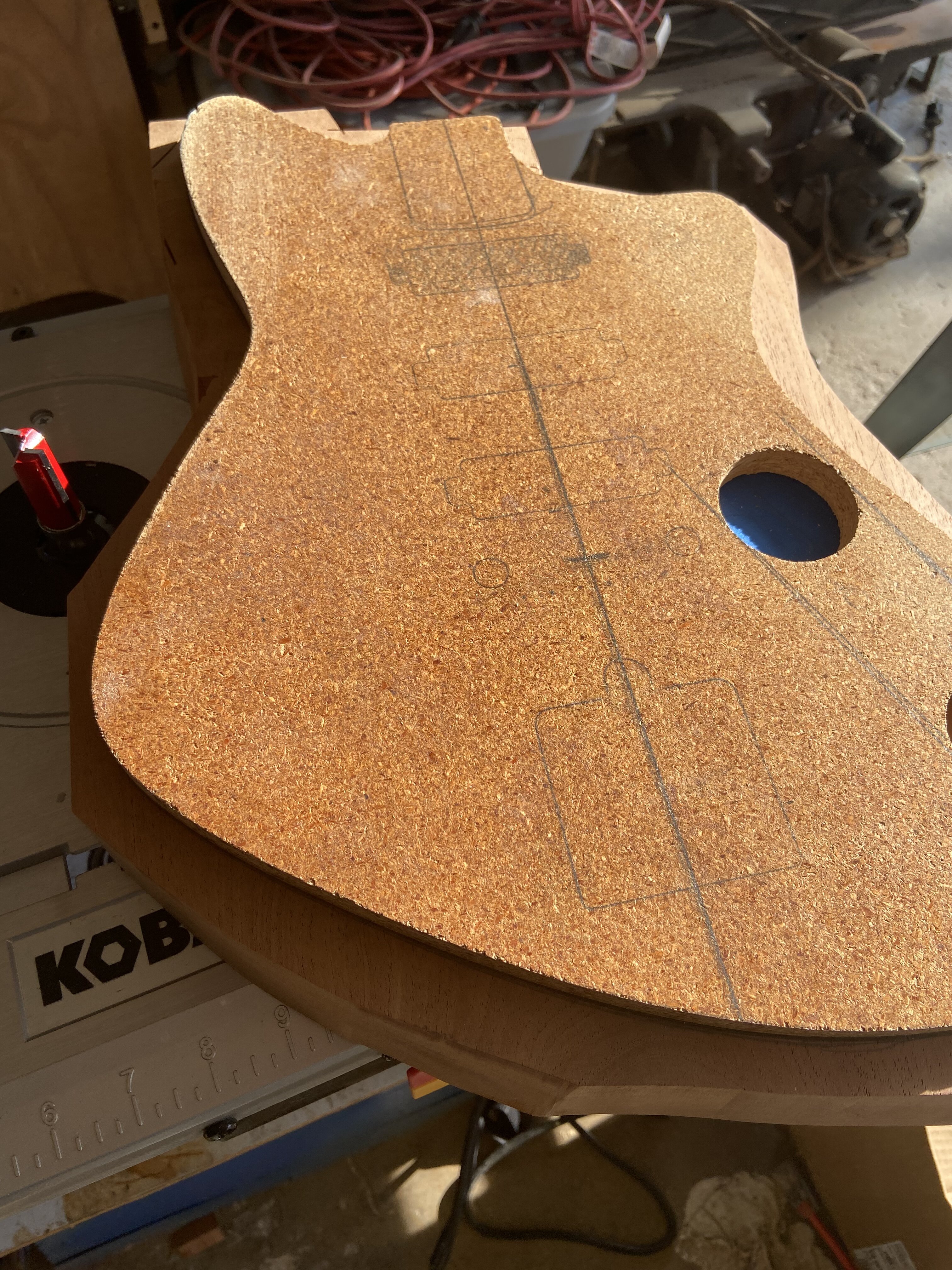

I copied my body template onto a sheet of MDF so I don’t mess up the original working with it.
After that, I attached the template to the rough cut blank with the masking tape and super glue method.

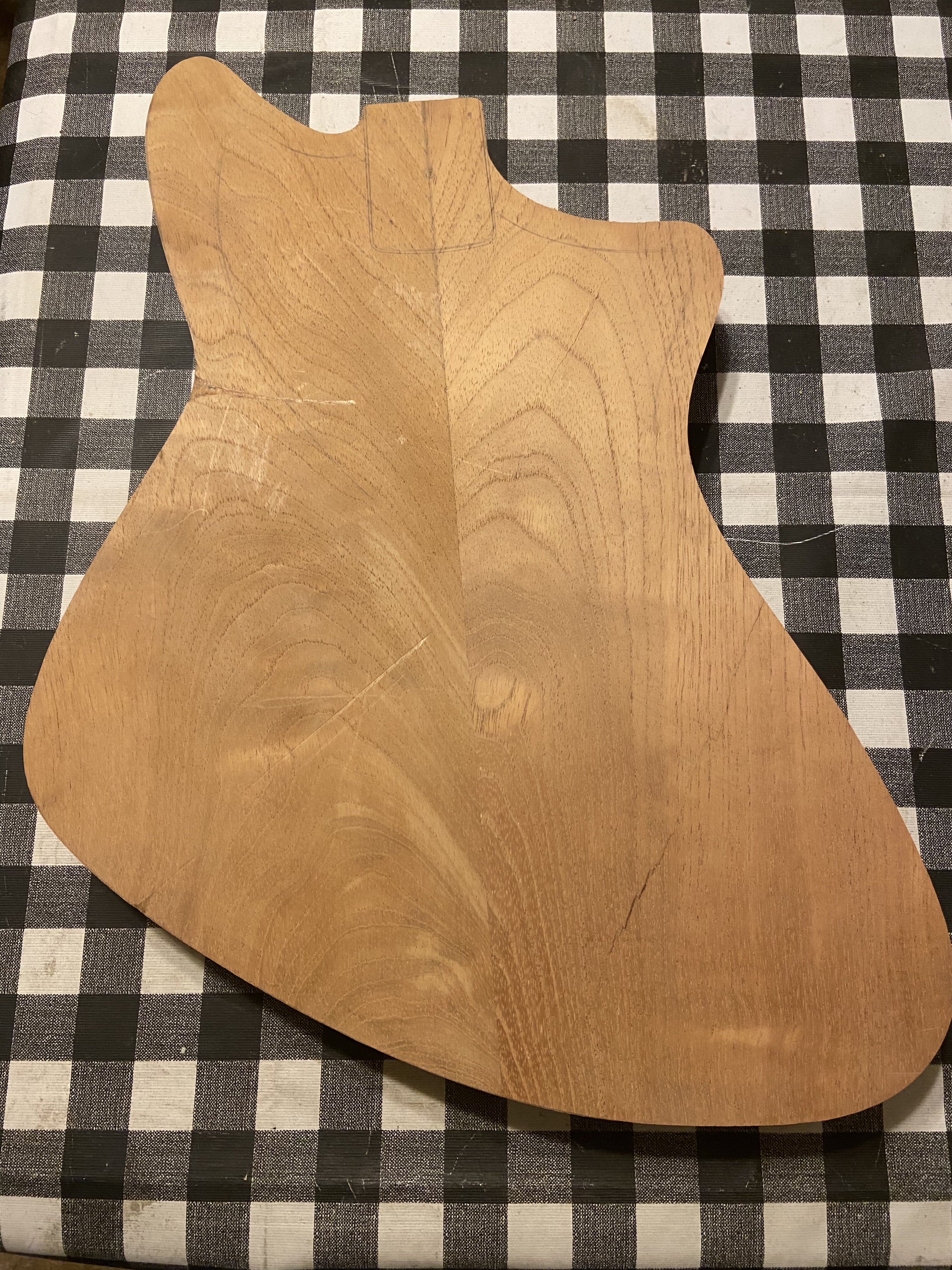

After routing, the first body is shaped!



[Elias Graves]

Woohoo! Two down one to go.



[Elias Graves]

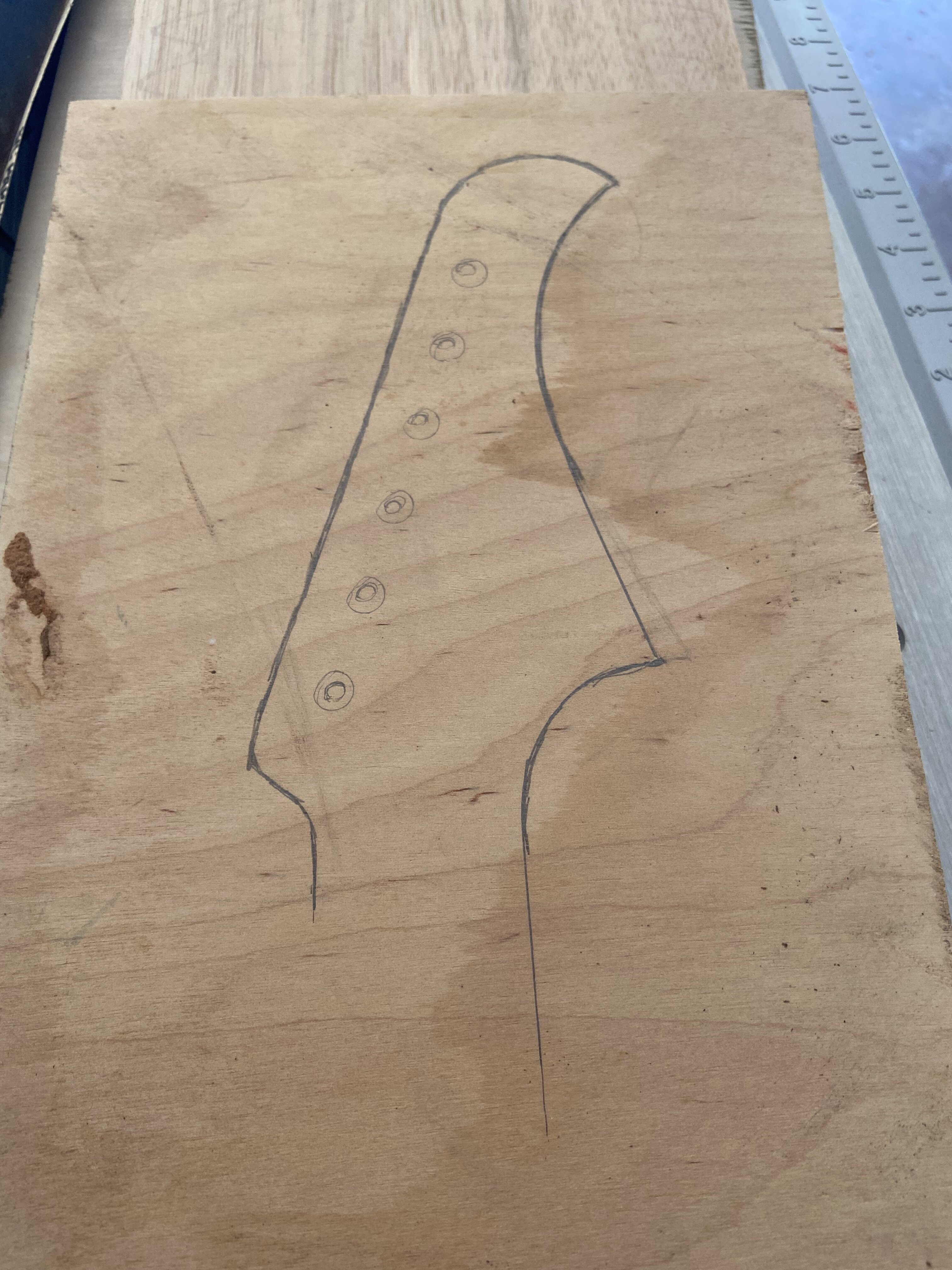

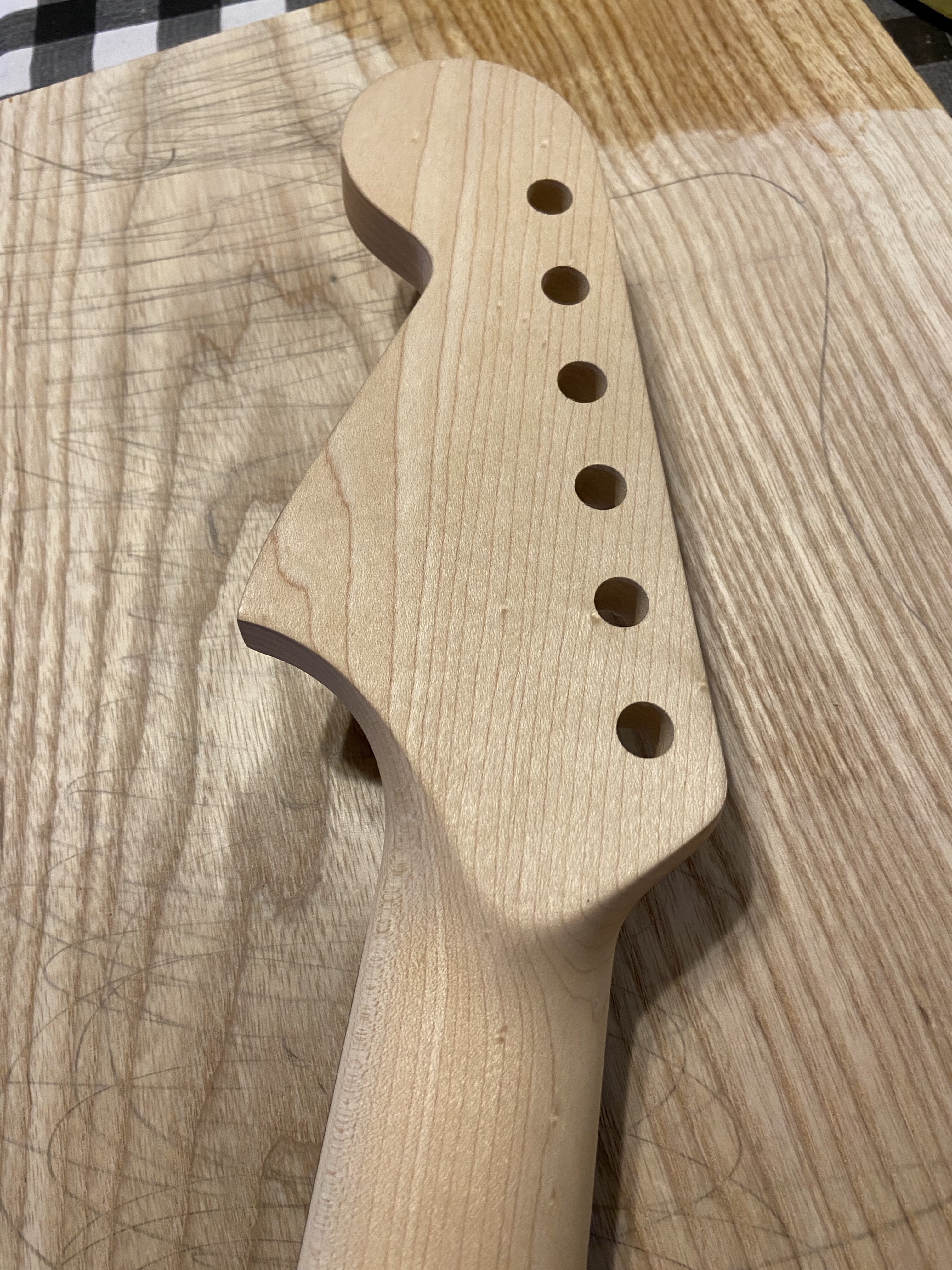

Designing a six in line headstock ain’t easy! Any thoughts?



[Elias Graves]

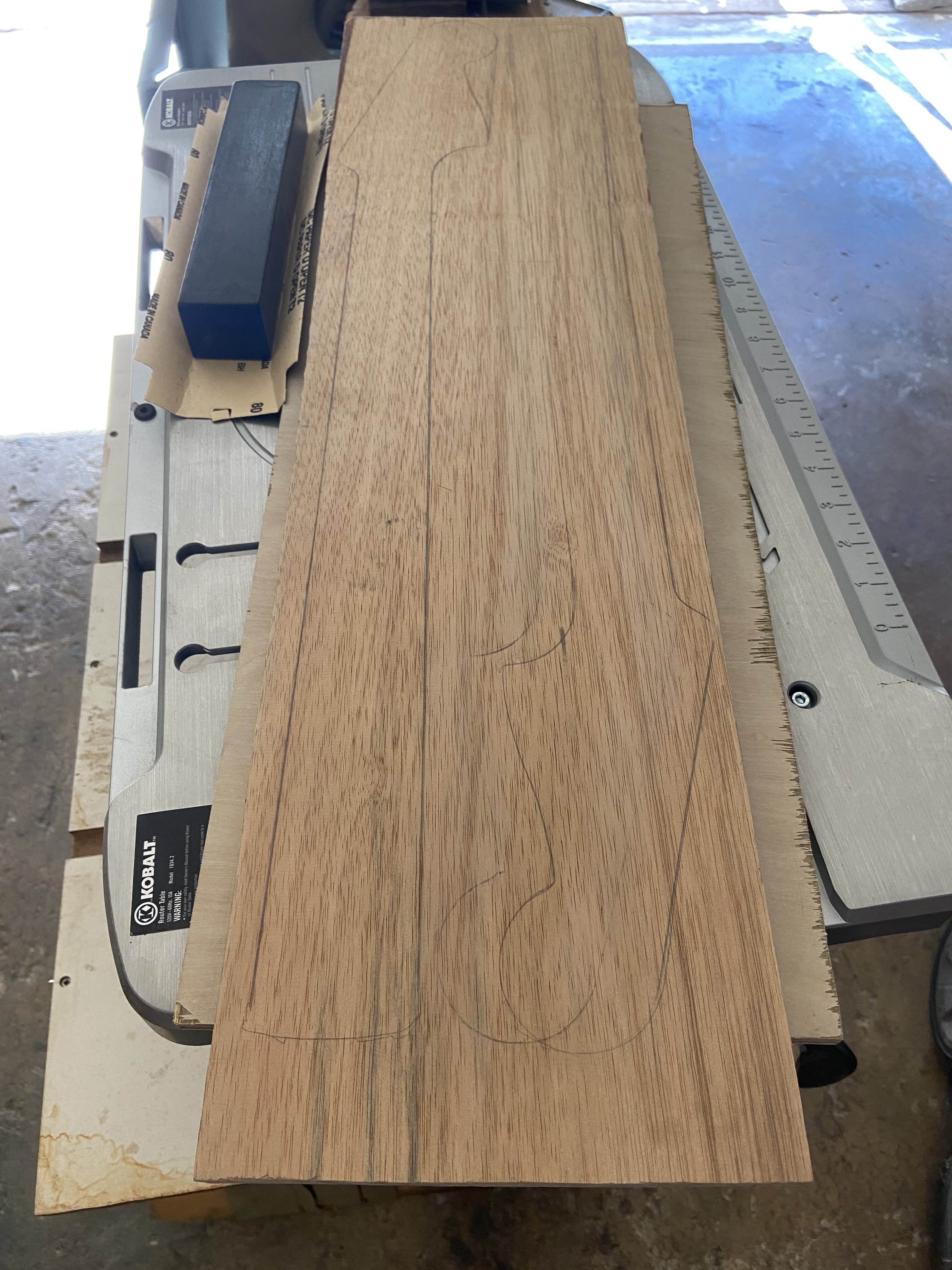

Today’s business. Getting this chunk of African mahogany prepped to become two necks. One is going on my P90 build. The Warmoth neck went on to Foo. The bass I was gonna make for him has morphed into a double humbucker hardtail.



[Knox in Box]

Don't like it, sorry. Too much eighties Hondo, Memphis starter Strat vibes.

Draw a bunch up on paper to size and see which one grows on you over night.



[Elias Graves]

Don't like it, sorry. Too much eighties Hondo, Memphis starter Strat vibes.

Draw a bunch up on paper to size and see which one grows on you over night.

See? It’s not easy!



[Knox in Box]

See? It’s not easy!

Yeah, it's not. I drew up quite a few of both types before I decided on two, and then made small adjustments over about a week.



[Bob411]

I guess I would start with a picture of a Fender headstock. Make 100 copies, only change what you can change.



[Chad]

I’d just round the corners a bit and call it a day.



[Elias Graves]

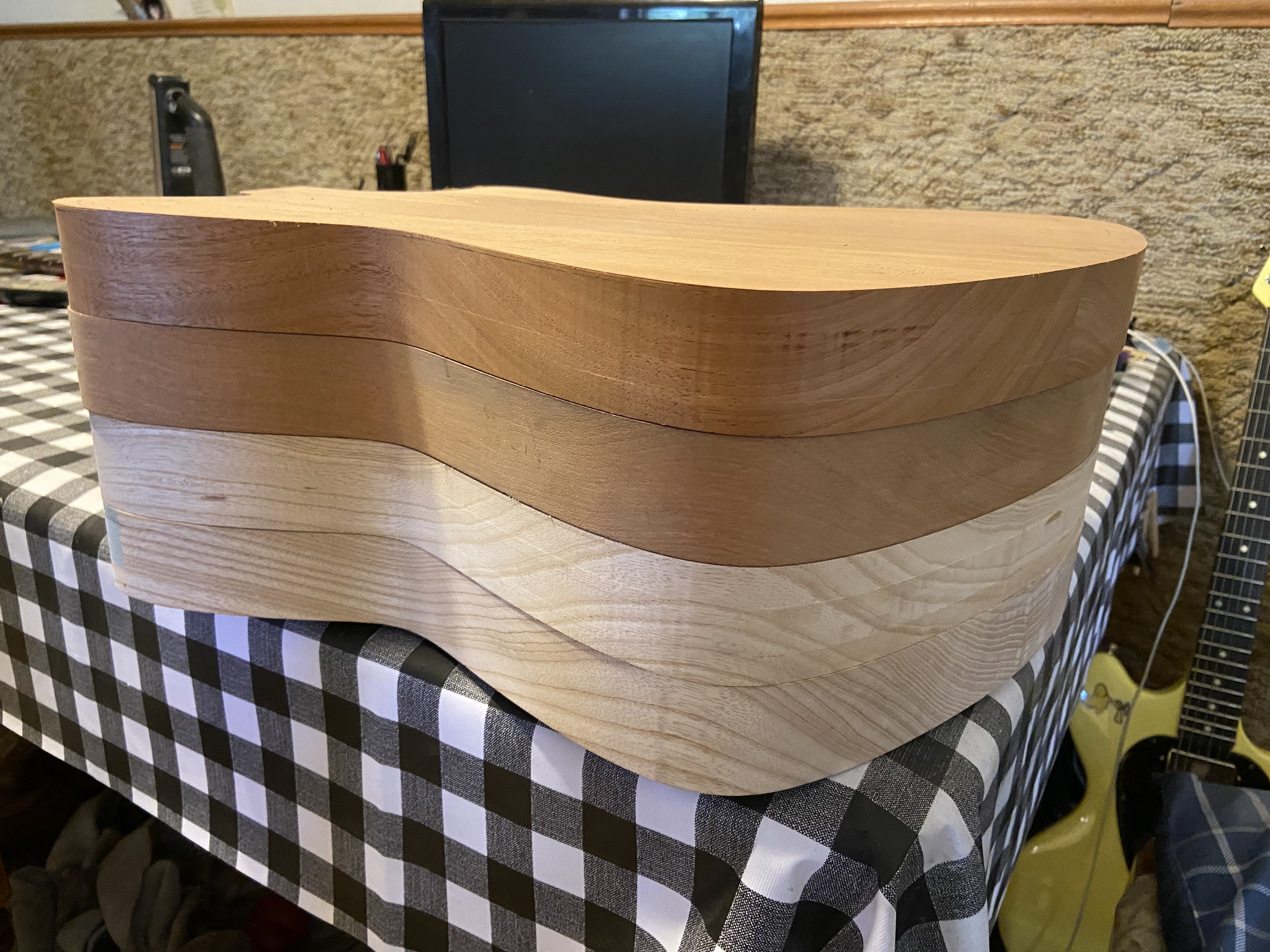

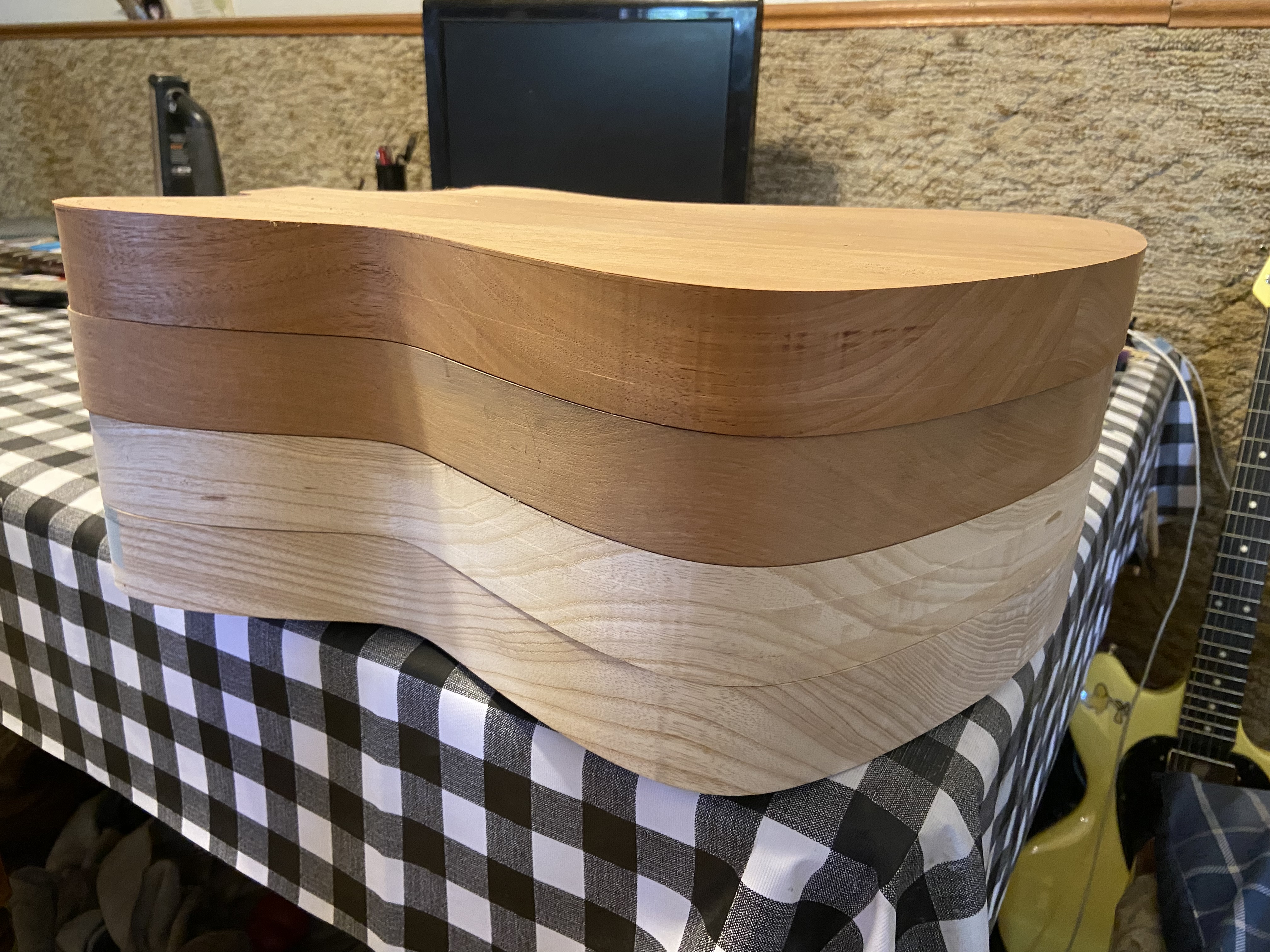

Saturday update!!! Four bodies cut. Two are swamp ash. One is South American mahogany and the other is African mahogany.

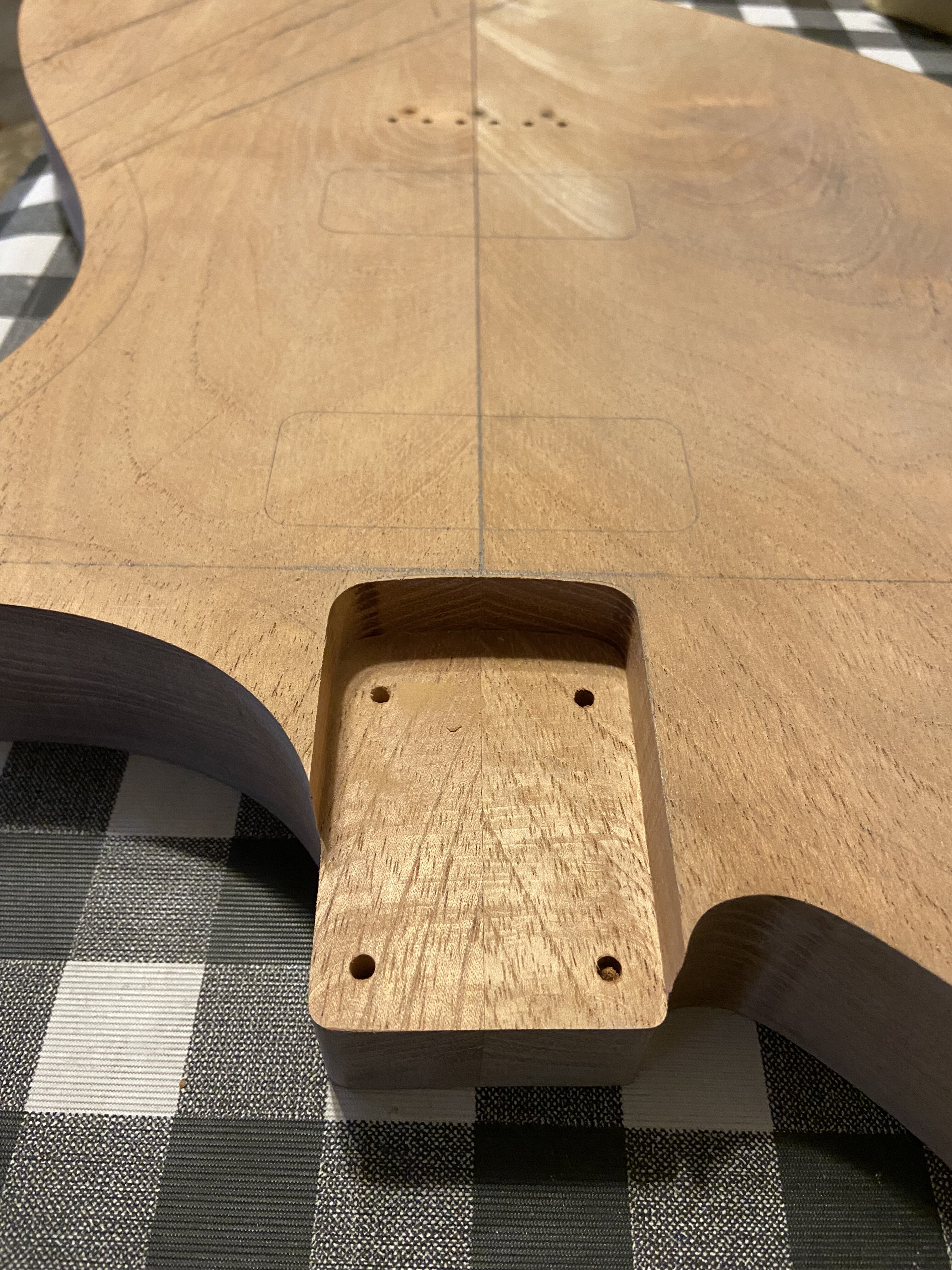

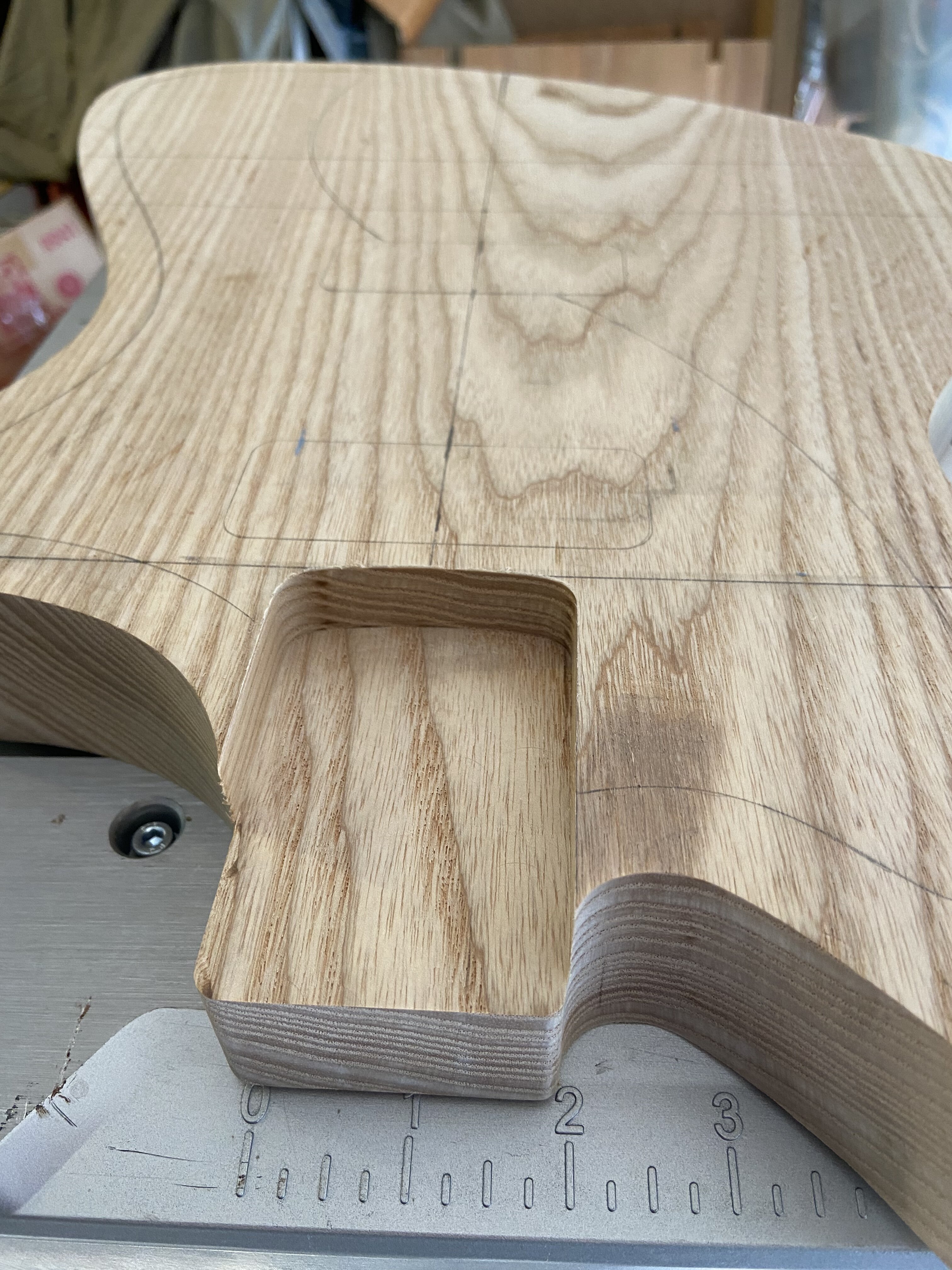

First neck pocket cut!!!



[Elias Graves]

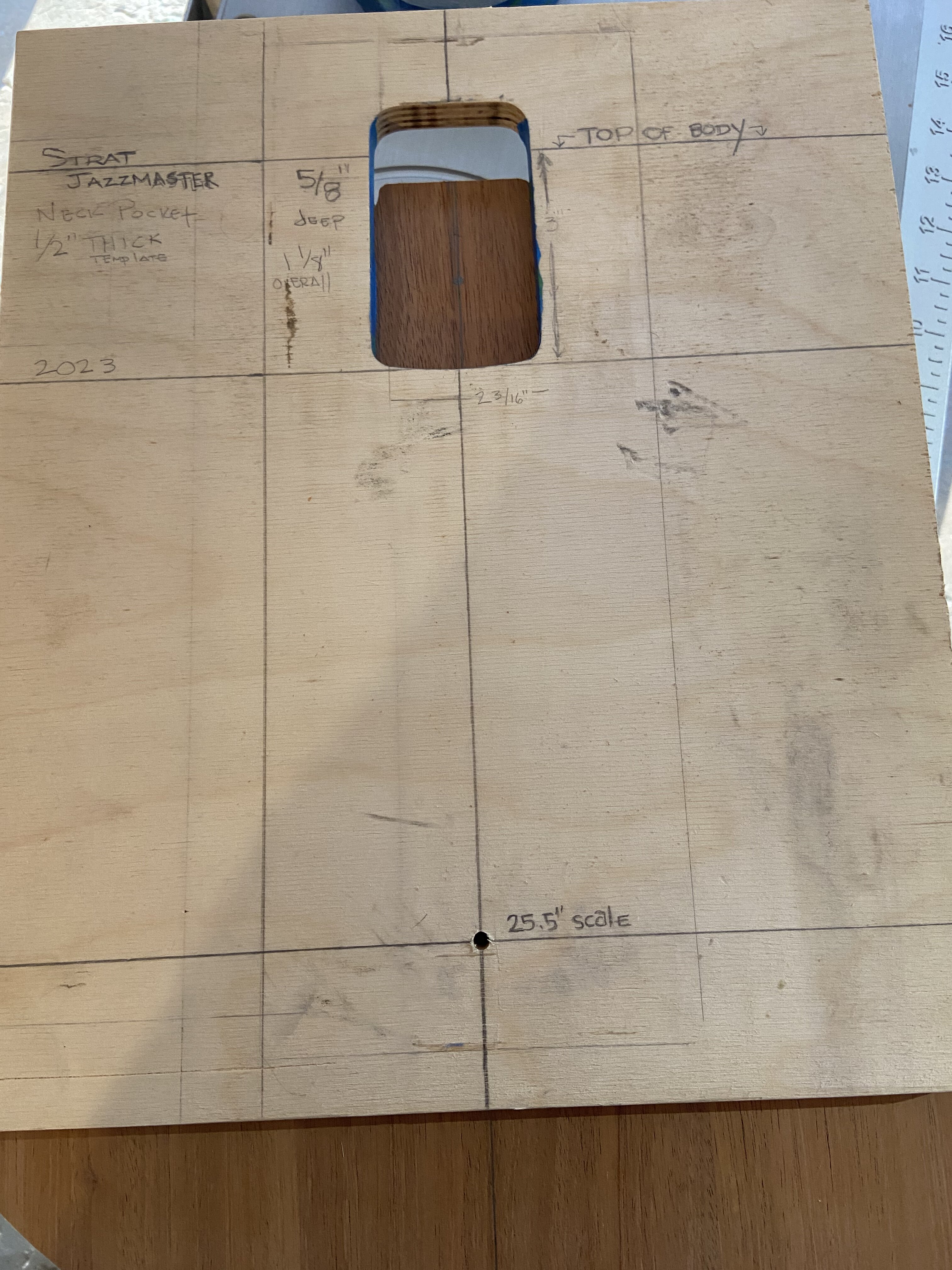

Here’s my neck pocket jig and mondo giant router.
On to the next!!!



[Elias Graves]

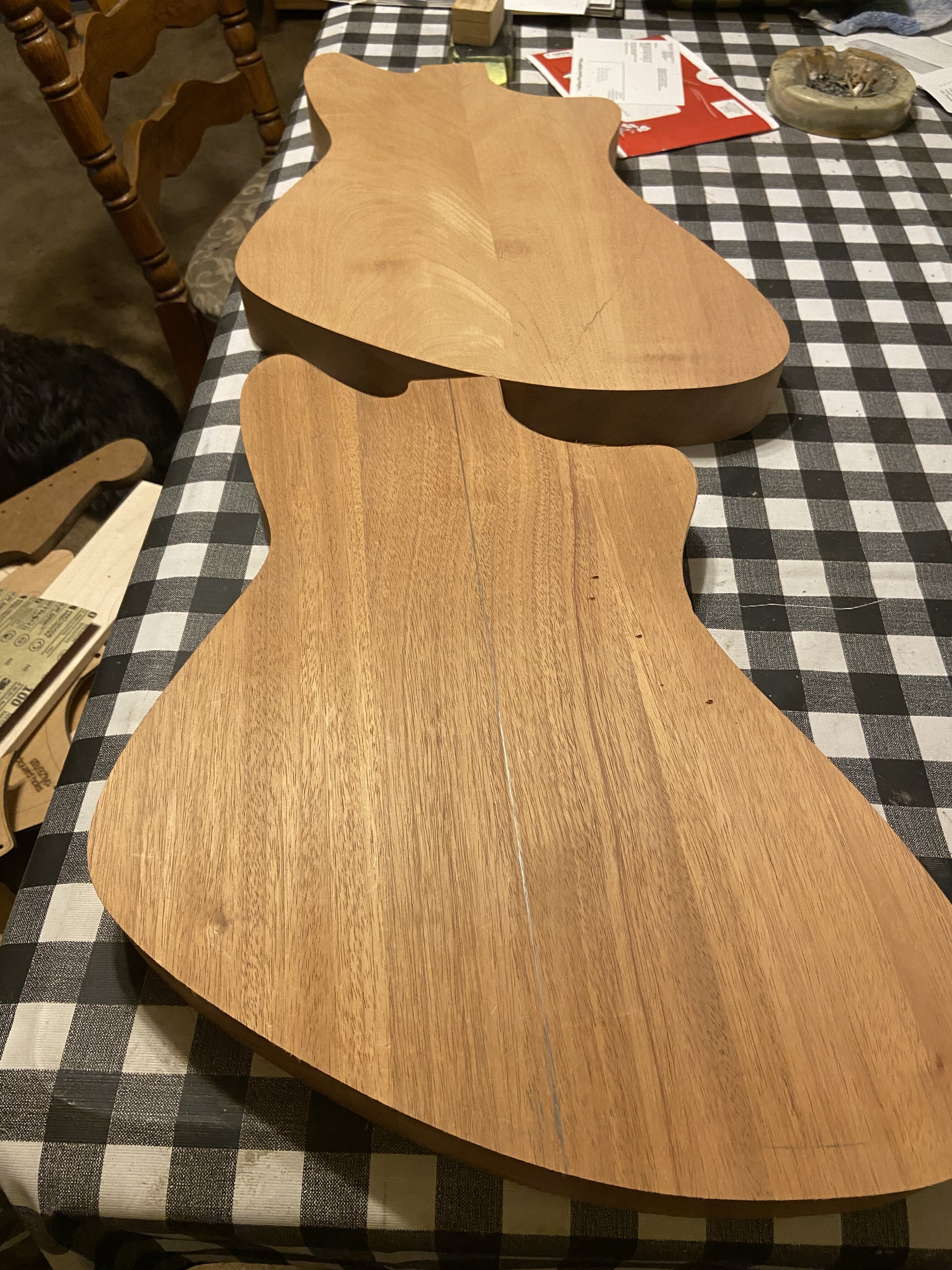

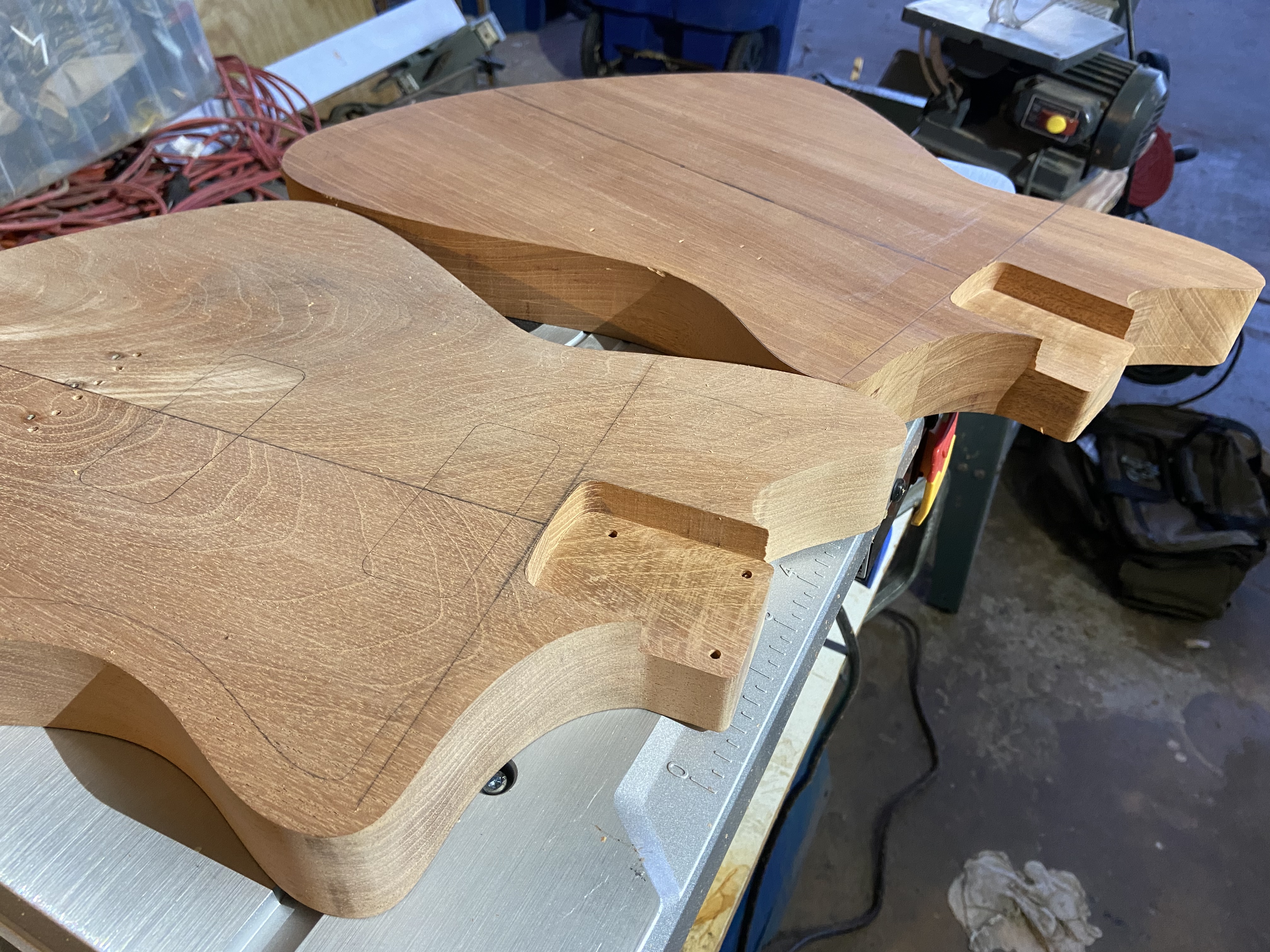

Peter Piper picked a pair of mahogany meteoras.



[miguel]

Looks nice!



[Elias Graves]

Ooh I love the grain on this one. Third neck mortise made.
